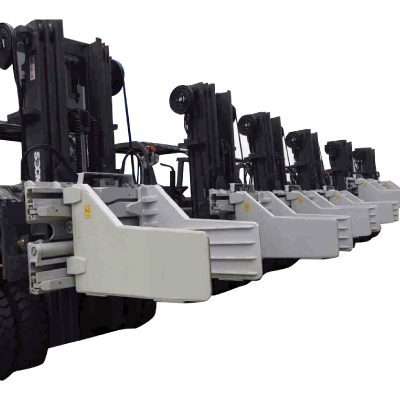

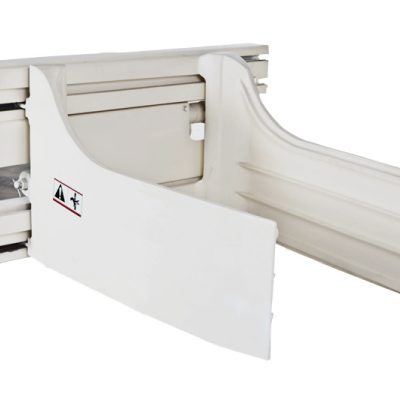

Bale Clamp Forklift Attachments Waste Paper Bale Clamp

products introduction

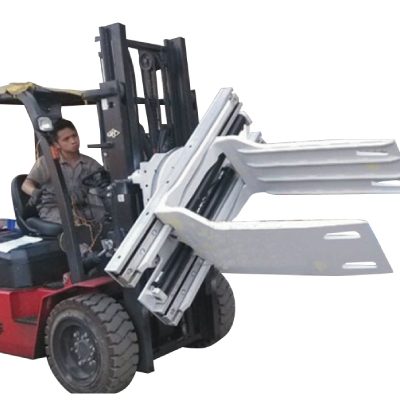

bale clamp can handle various forms of soft packs such as cotton, textile, wool, pulp, waste paper hay and industrial scrap and other soft items for paper making, chemical fiber, waste paper recycling, port and other industries without pallet handling and stacking operations in a safe and efficient way.
specification
bale clamp d-series sideshifting

catalog order no.	capacity @ (kg@mm)	mounting class	opening range (mm)	arm height (mm)	arm length (mm)	arm thickness (mm)	vertical center of جاذبه زمین vcg(mm)	weight (kg)	effective thickness et(mm)	horizontal center of gravity hcg(mm)
bc-1.9td-s1730-01	1900@500	ii	450-1730	420	1000	70	230	420	125	315
bc-1.9td-s1730-02	1900@500	ii	450-1730	420	1200	70	230	465	125	400
bc-2.7td-s1910-01	2700@500	ii/iii	560-1910	460	1000	75	250	555	140	315
bc-2.7td-s1910-02	2700@500	ii/iii	560-1910	460	1200	75	250	625	140	395
bc-2.7td-s1910-03	2700@500	ii/iii	560-1910	460	1350	75	250	680	150	420
bc-2.7td-s1910-04	2700@500	ii/iii	560-1910	460	900	75	250	535	140	305
bc-2.7td-s2300-01	2200@500	iii	490-2300	460	1000	75	250	710	150	240
bc-2.7td-s2300-02	2200@500	iii	490-2300	460	1200	75	250	730	150	240
bc-3.2td-s2100-01	3200@600	iii/iv	570-2100	460	1220	80	350	940	175	370
bc-3.2td-s2100-02	3200@600	iii/iv	570-2100	460	1350	80	350	990	175	420
bc-3.2td-s2100-03	3200@600	iii/iv	570-2100	460	1500	80	350	1050	175	470

note: *two additional hydraulic functions needed
*opening range means distance between arms' sharp points
*arm opening range, clamp height and length can be customized according to different operating condition.
hydraulic flow & pressure

model	pressure (mp)	hydraulic flow (l/min)
model	max.	min.	rec.	max.	min.	rec.	max.
side-shifting pattern		side-shifting operation			clamp operation
1.5t/2t	16	4	15	26	15	26	26
2.5t/3t	16	4	23	38	15	38	38
3.5t/4t	16	4	23	57	26	45	57
4.5t/5t	16	4	23	64	38	53	64
6t/8t	16	38	57	91	38	57	91
10t	16	38	57	91	38	57	91
rotating pattern clamp		side-shifting operation			clamp operation
1.5t/2t	16	19	38	57	19	38	57
2.5t/3t	16	19	38	57	19	57	57
3.5t/4t	16	19	38	57	26	45	68
4.5t/5t	16	19	38	57	19	38	57
6t/8t	16	19	38	57	26	45	57
10t	16	38	57	91	38	76	91

امکانات

• "T" profile ensure service life and applicable of different harsh working conditions.
• Simple but rigid structure, lightweight and high stability-solid design.
• Simple and quick assembly.
• Efficiently handling and stacking without pallet.
• Through pressure relief valve to achieve fast clamping, opening and side-shift function and prevent any damage to clamp and the load.
• Varied type of solid and thin arm construction
• Highly wear-resistant engineering plastic material fitted between the profiles for improve sliding porperties.
• Easy operation and maintenance.
گزینه ها
• Sideshipfting models.
• Frame widths and opening range can be customized
• External sideshifter mounting (200mm restricted sideshift movement)
• Wear Strips under arms
• Wear strips under frame(non revolving units)
Bale Clamp (Side-shifting) selection notes:
The type and shape of cargos
The weight for single piece of cargo
The dimension for single piece of cargo and multiple pieces of cargos
Whether the forklift truck is more use.
خط مشی گارانتی
All new products of Riggerte (Xiamen) Forklift Truck Attachment Co., Ltd, including attachments, forks and service parts, are warranted for 12 months following the date of delivery to the primary carrier, or 2000 hours of operation, whichever terminates first alternatively. For more warranty details, please feel free contact with us
